HDPE geocell Product Description:

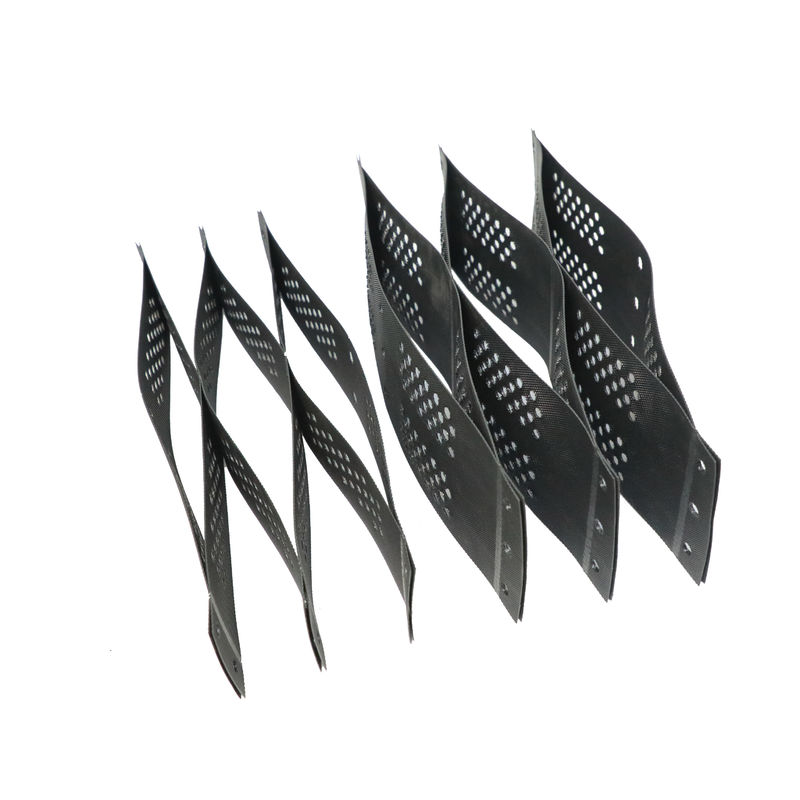

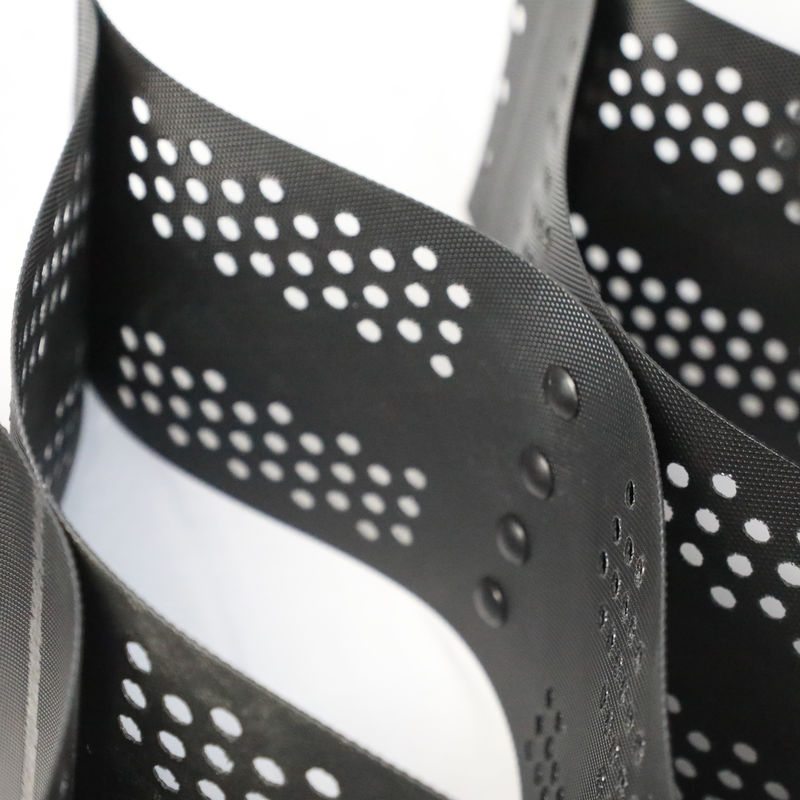

HDPE geocell permeable pavers is a mesh cell structure formed by high strength HDPE broadband, after strong welding. It retractable, transport can be folded up, when the use of the expansion and filling of soil and stone or concrete, with a strong lateral constraints and stiffness of the structure. It can be used as a cushion to increase the bearing capacity of soft foundation, or laid on the slope to form a slope protection structure, but also can build retaining structure.
HDPE geocell Application:

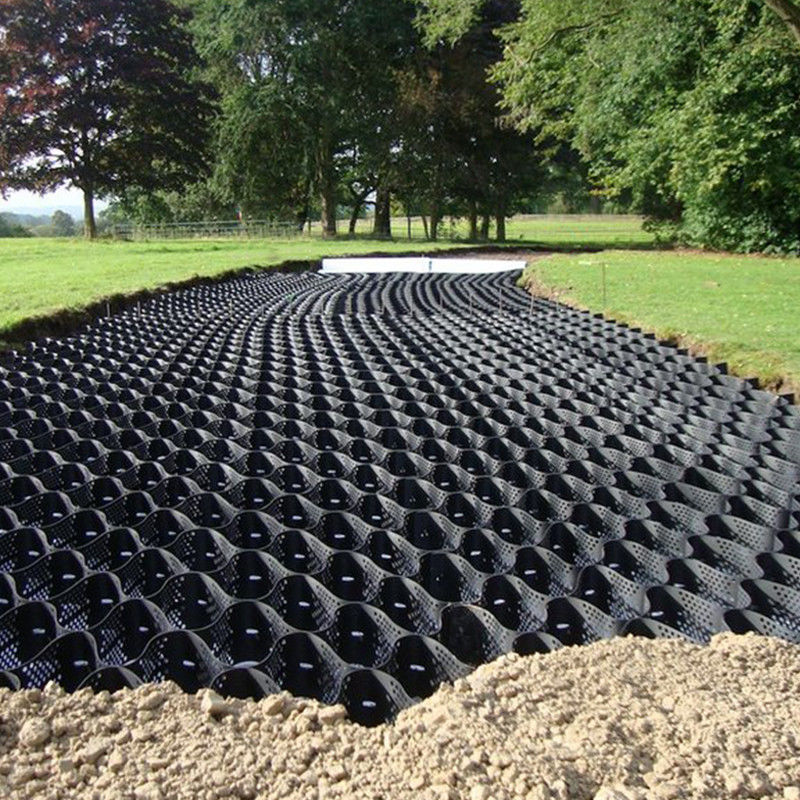

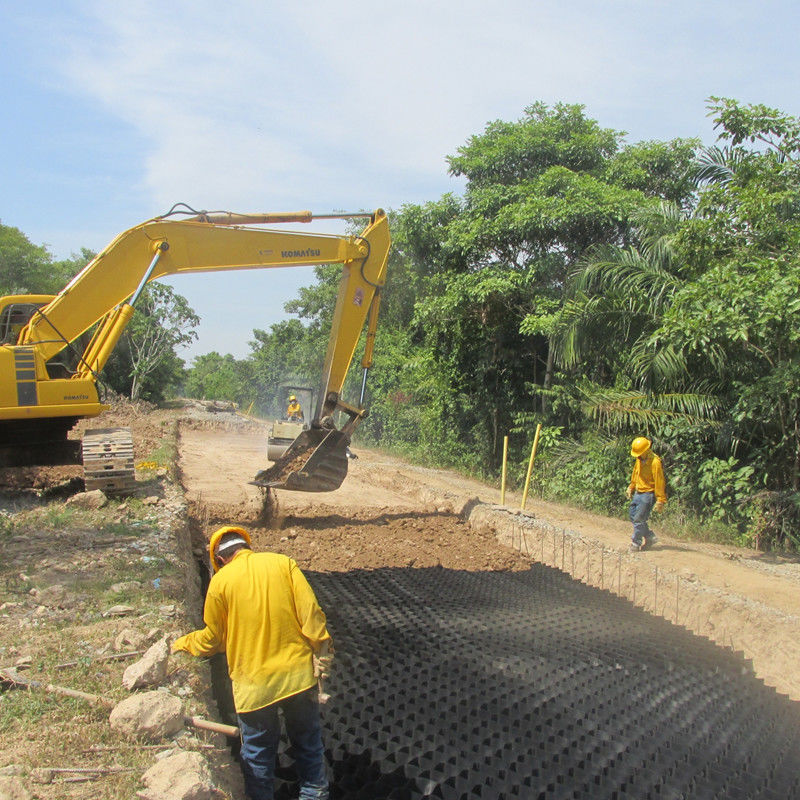

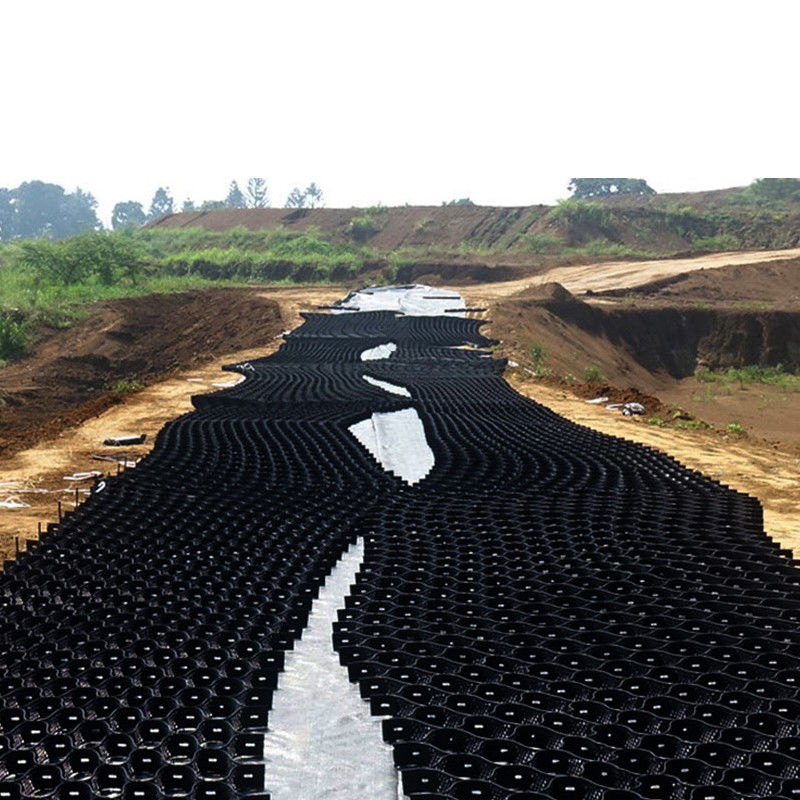

1. HDPE Geocell Used for all kinds of road building, driveways, soil stabilization and embankment stabilization
2. HDPE Geocell Used to stabilize river embankments.
3. HDPE Geocell Used to prevent landslides.
4. Using HDPE Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.
HDPE Geocell Main Feature:

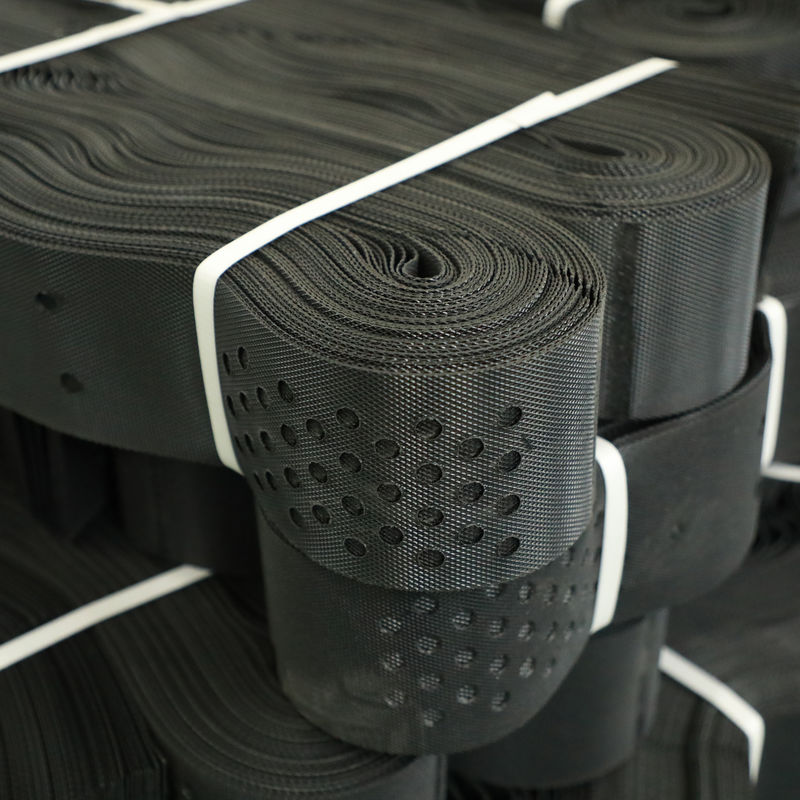

1.HDPE Geocell extractile,flexible to fold and convenient for transportation.
2.HDPE Geocellcan be filled with soil, gravel,earth,macadam and so on when being stretched into network.
3.HDPE Geocell has light material, wear resistance, acid and alkali resistance, anti aging.
4.HDPE Geocell is anti-skid and anti-deformation and also has a higher lateral limit, which can reduce the thickness of roadbed.
HDPE Geocell datasheet :
|
Materials Properties
|
Test method ASTM
|
UNIT
|
|
|
Cell Height
|
|
mm
|
75 100 150 200
|
|
Polymer Density
|
D1505
|
g/cm3
|
0.935-0.965
|
|
Environmental Stress Crack Resistance
|
D5397
|
Hours
|
>400
|
|
Environmental Stress Crack Resistance
|
D1693
|
Hours
|
6000
|
|
Carbon Black Content
|
D1603
|
%
|
1.5%-2.0%
|
|
Nominal Sheet Thickness Before Texturing
|
D5199
|
mm
|
1.27-5%,+10%
|
|
Nominal Sheet Thickness After Texturing
|
D5199
|
mm
|
1.52-5%,+10%
|
|
Strip Puncture Resistance
|
D4833
|
N
|
450
|
|
Seam Peel Strength
|
EN ISO 13426-18
|
N
|
1065 1420 2130 2840
|
|
Seam Efficiency
|
GRI-GS13
|
%
|
100
|
|
Nominal ExpandedCell Size (width *length)
|
|
mm
|
475*508, 500*500 etc
|
|
Nominal Expanded Panel Size (width length)
|
|
mm
|
2.56*8, 4.5*5.0, 6.5*4.5, 6.1 *2.44
|
